Stage III Ceramic Ball Bearing T04E GT35 Spec Turbo Charger T3 5 bolt

  • $473.25
  • Item Code: TRB-GT35-61-R-N_OF-TRB-FEED-GT35
  • Availability: In Stock

Available Options




0 reviews / Write a review

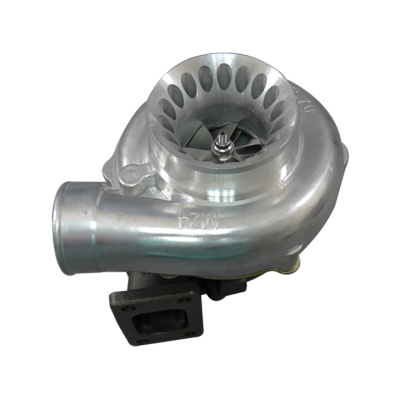

CXRacing Ball Bearing T04E GT35 Spec Turbo Charger

Stage III Ceramic Ball Bearing on Compressor Side
.70 A/R Compressor Housing
.63 A/R Turbine Housing For Super Fast Spool 1.8L-3.0L Motors
T3 Flange to Manifold
5 bolt Downpipe Flange
4" Air Inlet and 2.5" Turbo Outlet
Works for Many Bigger HP Applications, 300-500 HP
Exactly Same as the Picture Below
Professional Installation Is Highly Recommend
High Quality Built product. Each Turbo is Individually Tested and Computer Balanced.
BRAND NEW, not Used, not Remanufactured.

Item(s) Specification:
- 4" Air Inlet
- 2.5" Compressed Air Outlet
- Ceramic Ball Bearing on Compressor Side Compressor

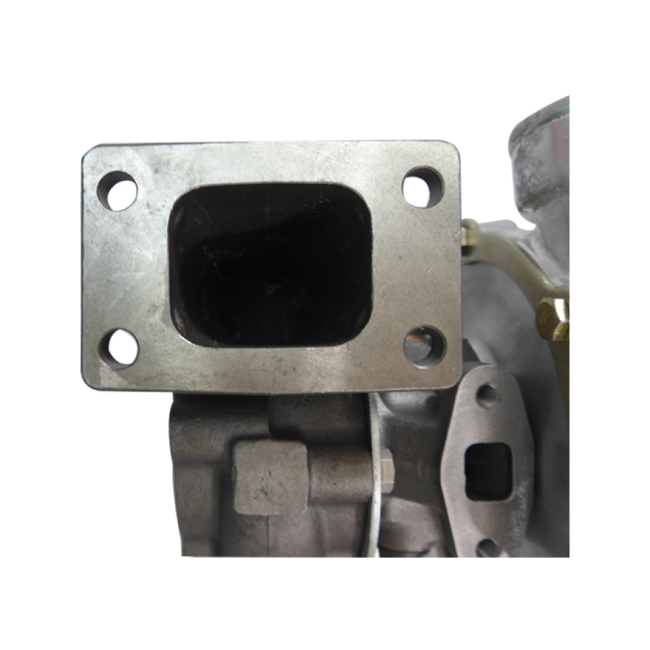

- Standard T3 Turbine Housing Flange
- 5 bolt Exhaust Outlet
- 300-500HP

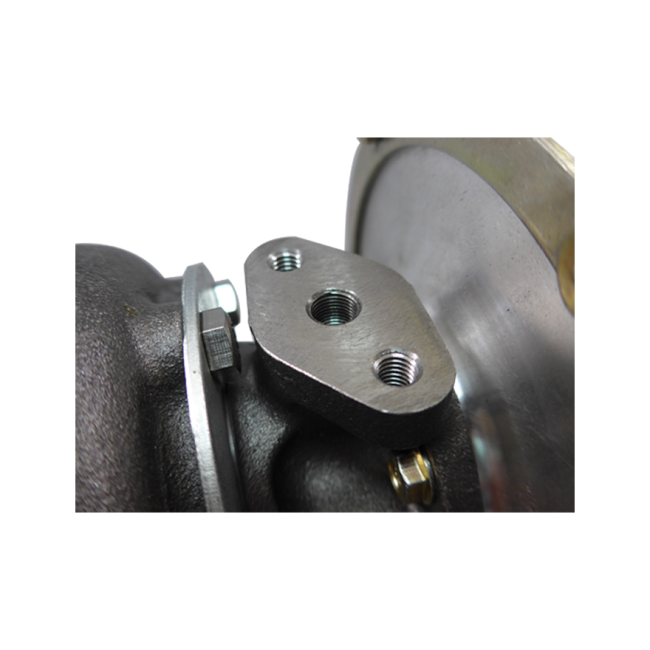

- Oil Cooled
- Working Pressure: 8-30 PSI

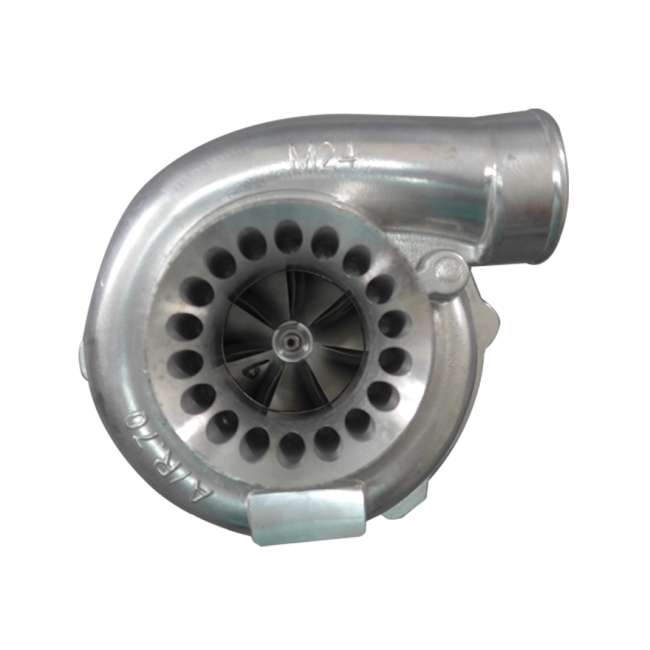

- 0.70 A/R Compressor
- 0.63 A/R Turbine
- Compressor Wheel (Major/Exducer): 76/60mm
- Turbine Wheel (Major/Inducer): 61/56mm

Item(s) Included: 1x T04E GT35 Turbocharger

Optional Manual Turbo Boost Controller

Optional T3 Turbo Manifold Flange
